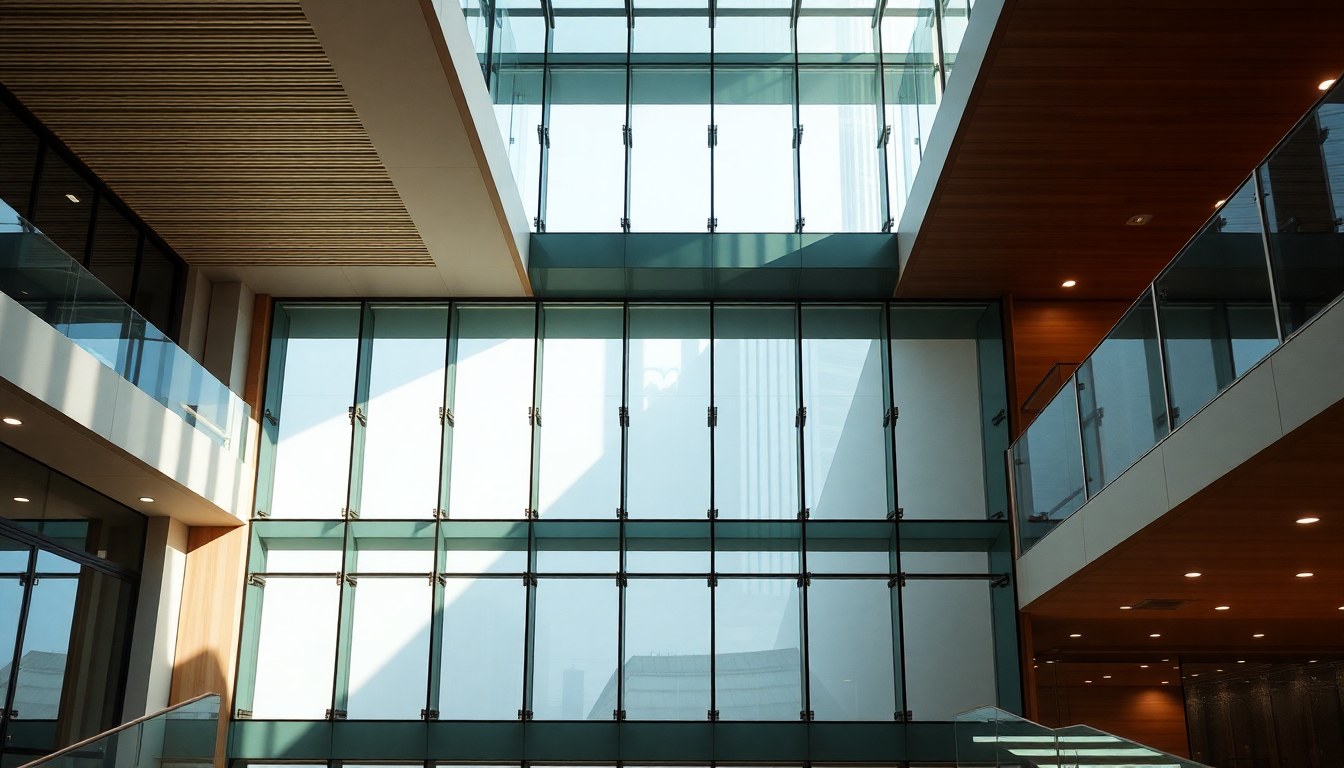

Point-Fixed Glass Facade System: Installation Requirements for Indian Commercial Buildings

Point-fixed glass facade systems, also known as spider-glazing systems, have transformed the skyline of Indian metropolitan areas with their sleek, frameless appearance and unobstructed views. These systems use mechanical point fixings—typically four-legged spider fittings—to support large glass panels without traditional framing, creating a sophisticated aesthetic that appeals to architects and developers across Mumbai, Bangalore, Gurugram, and other commercial hubs. Understanding the structural requirements, load calculations, and compliance standards is essential for successful implementation in India's diverse climatic zones.

Understanding Point-Fixed Glass Facade Components

A point-fixed glass facade system consists of several critical components that work together to create a stable, weather-resistant curtain wall. The primary element is the spider fitting—a stainless steel connector with multiple arms (typically four or eight) that clamps onto the glass at drilled holes. These fittings distribute loads from the glass panel to the supporting structure, usually a steel or aluminum framework positioned behind the glass.

The glass panels themselves must be toughened or heat-strengthened to withstand point loads at the fixing locations. Laminated glass combinations are standard for commercial applications, providing safety, acoustic insulation, and UV protection. The glass thickness typically ranges from 10mm to 25mm depending on panel size, wind loads, and structural requirements. Countersunk holes are precision-drilled at the panel corners or edges to accommodate the spider fitting bolts.

Supporting structures include steel tension rods, cables, or rigid frames that transfer loads from the spider fittings to the building's primary structure. Structural sealants and gaskets ensure weatherproofing at the joints between panels, while maintaining the visual continuity that makes these systems attractive. When planning such installations, collaboration with experienced professionals like SAGA Design Studio- Architecture, Interior designers & Contractors can help navigate the technical complexities.

Structural Load Calculations for Indian Climate Zones

India's diverse geography demands careful consideration of wind loads, seismic forces, and thermal stresses when designing point-fixed facades. The country is divided into six wind zones as per IS 875 (Part 3), with coastal areas experiencing significantly higher wind pressures than inland regions. For instance, Mumbai and Chennai fall under higher wind-pressure zones requiring more robust calculations than cities like Delhi or Pune.

Wind load calculations must account for both positive and negative pressures acting on the facade. The basic wind speed varies from 33 m/s in protected inland areas to 55 m/s in severe cyclonic regions along the eastern coast. These values are modified by terrain category, building height, and local topography factors. Point-fixed systems must be designed to resist these loads without excessive deflection, typically limiting glass panel deflection to L/60 or L/125 depending on the project specifications.

Critical Load Factors

• Dead loads: Self-weight of glass, spider fittings, and supporting framework
• Wind loads: Calculated per IS 875 (Part 3) based on regional wind zones and building exposure
• Seismic loads: Horizontal forces as per IS 1893, particularly critical in zones III, IV, and V
• Thermal loads: Expansion and contraction due to temperature variations of 15-45°C across Indian regions
• Impact loads: Accidental human impact as per safety standards

The spider fittings themselves must be engineered to handle concentrated point loads without causing stress fractures in the glass. Finite element analysis is often employed to verify that stress concentrations around fixing holes remain within safe limits, typically below 15-20 MPa for toughened glass under design loads.

Spider Fitting Types and Selection Criteria

Spider fittings come in various configurations to suit different architectural requirements and structural conditions. The most common type is the four-arm spider, which connects to a single point on the supporting structure while clamping the corners of four adjacent glass panels. This creates the characteristic cross-shaped joint visible from the exterior.

Single-arm and two-arm spiders are used at edges, corners, and other locations where fewer glass panels meet. Eight-arm or custom configurations may be specified for unique geometric conditions. Material selection is critical—marine-grade stainless steel (SS 316) is preferred for coastal installations to resist corrosion from salt-laden air, while SS 304 suffices for most inland applications.

Key Selection Parameters

1. Load capacity: Fittings must be rated for maximum design loads with appropriate safety factors (typically 2.5 to 3.0)
2. Adjustment range: Three-dimensional adjustability allows for construction tolerances and alignment during installation
3. Glass thickness compatibility: Fittings must accommodate the specified glass thickness with proper clamping pressure
4. Aesthetic finish: Polished, brushed, or powder-coated finishes to match architectural intent
5. Corrosion resistance: Material grade selection based on environmental exposure

The connection between spider fittings and the supporting structure requires careful detailing. Tension rod systems offer visual lightness but demand precise pre-tensioning and periodic maintenance. Rigid frame systems provide greater stiffness and are often preferred for high-rise applications where deflection control is paramount.

BIS Standards and Regulatory Compliance

Commercial glass facade installations in India must comply with multiple Bureau of Indian Standards (BIS) codes and local building regulations. IS 2553 specifies requirements for safety glass in buildings, mandating the use of toughened or laminated glass in all overhead and facade applications. For point-fixed systems, laminated toughened glass is the industry standard, providing both structural integrity and post-breakage retention.

IS 875 (Parts 1-5) governs structural load calculations including dead loads, live loads, wind loads, snow loads, and special loads. Part 3, dealing with wind loads, is particularly critical for facade design. The code requires consideration of local wind speed, terrain category, building height, and shape factors. Glass thickness, panel dimensions, and spider spacing must be verified against these calculated loads.

Fire safety regulations under the National Building Code (NBC) 2016 may require fire-rated glass in certain locations, particularly in atriums, stairwells, and building separations. While point-fixed systems can accommodate fire-rated glass, the additional weight and thickness must be factored into structural calculations. Acoustic performance requirements are addressed in IS 1950, which may necessitate laminated glass with acoustic interlayers for buildings near high-traffic areas or airports.

Testing and Certification Requirements

Before installation, glass panels should be tested for compliance with IS 2553 standards, verifying fragmentation patterns, surface stress, and optical quality. Spider fittings and their connections require load testing to confirm their capacity matches design specifications. Third-party certification from NABL-accredited laboratories provides assurance of quality and compliance.

Wind tunnel testing may be mandated for high-rise buildings or structures with complex geometries to accurately determine wind pressures and dynamic effects. This is particularly important for buildings exceeding 50 meters in height or those in cyclone-prone coastal regions. Architects and designers working with firms like BLUEARCH Architects - Interiors - PMC can ensure these testing requirements are properly addressed during the design phase.

Installation Process and Quality Control

Successful installation of point-fixed glass facades requires meticulous planning and execution. The process begins with precise setting out of the supporting structure, as even minor misalignments can accumulate and create installation difficulties. Tolerance control is critical—typical installation tolerances range from ±2mm for spider fixing points to ±5mm for overall dimensional accuracy.

Glass panels are typically installed from bottom to top, with each panel carefully positioned and secured using the spider fittings. Temporary supports and suction lifting equipment are essential for safe handling of large, heavy panels. The adjustability built into quality spider fittings allows installers to fine-tune panel alignment in three dimensions, ensuring consistent joint widths and planar alignment across the facade.

Weatherproofing is achieved through structural silicone sealants applied at the joints between panels. These sealants must be compatible with the glass coating, spider materials, and environmental conditions. Proper surface preparation, priming, and curing are essential for long-term performance. Joint widths typically range from 10mm to 20mm to accommodate thermal movement and construction tolerances.

Quality Assurance Checkpoints

• Verification of spider fitting torque values to ensure proper clamping without over-stressing the glass
• Inspection of all drilled holes for chips, cracks, or edge quality issues
• Testing of structural sealant adhesion through sample pull tests
• Water spray testing to verify weatherproofing performance
• Final alignment checks using laser surveying equipment
• Documentation of all deviations and corrective actions

Maintenance and Long-Term Performance

Point-fixed glass facades require regular maintenance to preserve their appearance and structural integrity. Glass cleaning is the most visible aspect, but structural inspections are equally important. Annual inspections should verify the condition of spider fittings, checking for corrosion, loose connections, or signs of stress. Structural sealants should be examined for adhesion failure, cracking, or deterioration, with remedial work undertaken promptly to prevent water ingress.

In coastal environments or industrial areas with high pollution levels, more frequent inspections may be necessary. Stainless steel components can develop surface staining or corrosion if not properly maintained, particularly in areas with high chloride exposure. Protective treatments and regular cleaning help preserve the aesthetic quality of the fittings.

The supporting structure, including tension rods and cables, requires periodic inspection and re-tensioning as needed. Deflection measurements can identify any progressive movement or settling that might indicate structural issues requiring attention. Maintaining detailed records of all inspections, maintenance activities, and component replacements supports long-term performance and facilitates warranty claims if issues arise.

Frequently Asked Questions

What is the typical cost range for point-fixed glass facade systems in India?

Point-fixed glass facade systems in India typically cost between ₹3,500 to ₹8,000 per square meter, depending on glass specifications, spider fitting quality, project complexity, and location. High-performance glass with special coatings, imported spider fittings, and complex geometries push costs toward the higher end. This pricing usually includes materials, fabrication, and installation but excludes the primary supporting structure and architectural fees.

Can point-fixed systems be used in high seismic zones in India?

Yes, point-fixed glass facades can be designed for high seismic zones (zones IV and V) in India, but they require careful engineering to accommodate lateral movement. The supporting structure must be designed with appropriate flexibility and drift capacity, while maintaining glass panel integrity. Flexible connections and adequate clearances at building interfaces allow the facade to move with the structure during seismic events without glass breakage.

What glass thickness is required for point-fixed facades in cyclone-prone areas?

In cyclone-prone coastal regions of India, point-fixed facades typically require laminated toughened glass ranging from 12mm to 25mm total thickness, depending on panel size and exposure. For areas with basic wind speeds exceeding 50 m/s, 10mm+1.52mm PVB+10mm laminated configurations are common for moderate-sized panels (1.5m x 2.5m). Larger panels or higher wind exposures necessitate thicker glass assemblies, with structural calculations determining the final specification.

How often should point-fixed glass facades be inspected and maintained?

Point-fixed glass facades should undergo comprehensive professional inspections annually, with more frequent visual checks every six months. Coastal installations or buildings in industrial areas may require quarterly inspections due to accelerated corrosion and soiling. Glass cleaning frequency depends on location and aesthetic requirements—typically quarterly for most commercial buildings, but monthly for premium installations. Spider fittings should be checked for torque and corrosion annually, while structural sealants require inspection every two years.

Are point-fixed glass systems energy efficient for Indian climates?

Point-fixed glass facades can achieve good energy efficiency when specified with appropriate high-performance glass. Low-E coatings, solar control tints, and insulated glass units significantly reduce heat gain, which is critical in India's predominantly hot climate. However, the all-glass nature of these systems means careful attention to glass specification is essential. Double-glazed units with low-E coatings and argon filling can achieve U-values of 1.6-2.0 W/m²K and solar heat gain coefficients below 0.3, making them suitable for air-conditioned commercial buildings when combined with proper HVAC design.
